UML Class Relationships

Types of relationships in UML class diagram §

1. Dependencies
2. Generalizations
3. Associations

---

Dependencies §

• Indicates semantic relationship btw two classes

---

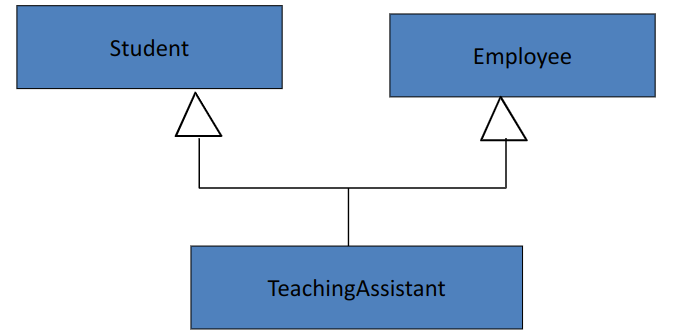

Generalizations §

• Connects a sub class to it’s super class (Inheritance basically)

• Reverse is called specialization



Note

JAVA doesn’t support multiple inhertence

---

Association §

• A communication btw two classes

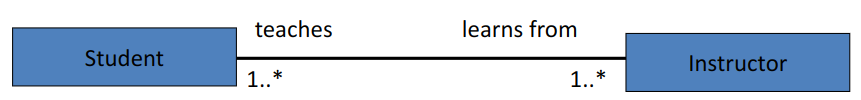

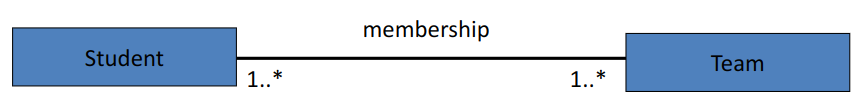

• We can name the association

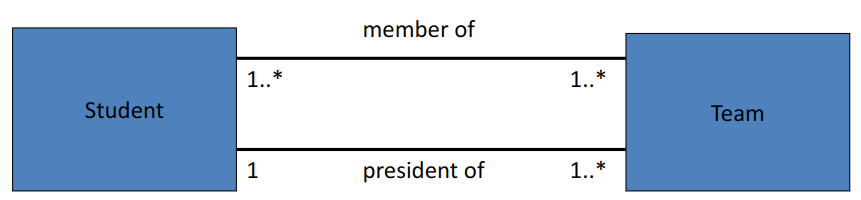

• We can use dual association,

• We can define navigatability,

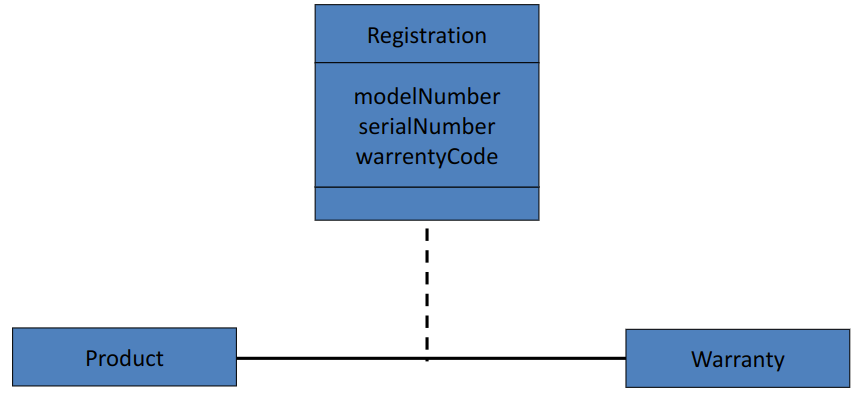

• Association can be objects themselves (association or link classes)

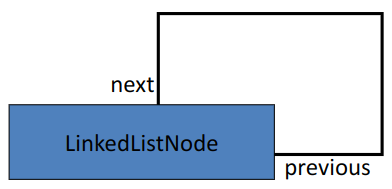

• Self association is possible



• Composition and Aggregation are sub types

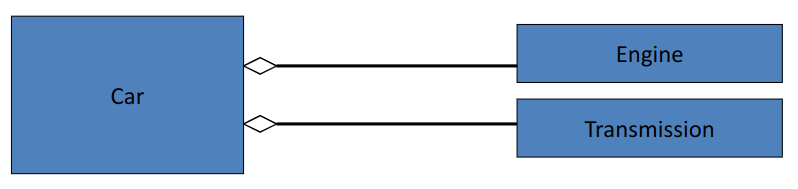

Aggregation §

• Indicates a “part-whole” relationship
• Denoted by a hallow diamond

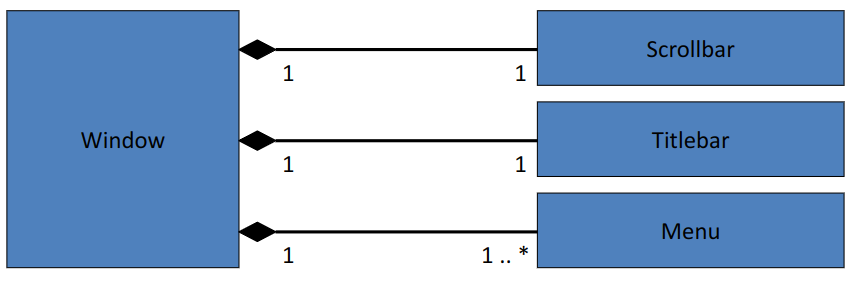

Composition §

• Indicates strong ownership (stronger form of aggregation)
• Life time of the part is intertwined on the lifetime of the whole
• Denoted by a filled diamond

---

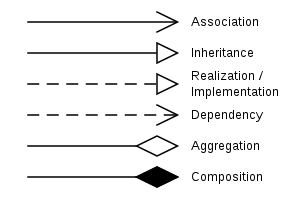

Summary §

---

Related Ideas §

• Depicting Class in a UML diagram

---
